How to wire hallway and landing lights. Te from sw1 to crose 1 and connect N in the switch with a wago same in sw2 to crose 2 and job done. Wall sconces are winners with narrow hallways. To switch from two locations youll need 2 two way switches and wire them together in a particular way.
Also the same wiring circuit diagram can be used for 2-way lighting or controlling electrical appliances from two different places by using two-way switches. Two way switching 3 wires. These collections below show you lighting by the most poplar design styles have a look through them to get a feel for them you might be surprised.
With literally thousands of ceiling lights youre going to find your perfect design right here. This staircase wiring circuit can be done by 3 different methods with two way switches which is shown in the above diagrams you can use one of these wiring methods for controlling a light bulb from 2 different places. This is very useful in a number places particularly hallways and stairs.
The 3 core is a single cable connecting hall switch to landing switch. Opt for bright lighting. Lighting a hallway dos and donts.
1-connect the bottom hall switch to the top landing switch using 3 core earth. 3-connect top landing switch to top landing ceiling rose using 2 core earth. About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy Safety How YouTube works Test new features Press Copyright Contact us Creators.

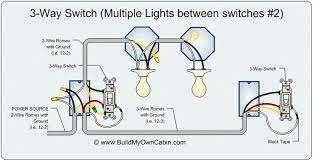

A two way switch has 3 terminals. COM on the first switch connects to COM on the second switch L1 on the first switch connects to L1 on the second and L2 on the first switch connects to L2 on the second. All earth wires should connect to the earth terminal in the switch back-box and if you are using metal switches there MUST.
