Bathroom Lighting Zones 18th Edition

All installations must comply to the guidelines which are based on a zone area which is similar to the installation of lighting around a swimming pool area.

Bathroom lighting zones 18th edition. If there is no tray then zone 0 is from the floor to a height of 01m and the same horizontal extent as zone 1. How are the zones in bathrooms defined. It is good practice to regard the area around a wash basin within a 60cm radius of any tap as zone 2.

Section 701 Locations containing a bath or shower 18th Edition. Consider zone 1 to be the splash zone where the installed equipment is likely to get very wet very quickly but would not necessarily be submerged. It usually covers the perimetres of your zone 1 area plus the radius of your sink.

It also covers the width of the shower cubicle or length of the bath. In the bath itself. The space under the bath tub or shower basin is considered to be zone 1.

Zone 1 - these will be the lights you place directly over your bath or shower. These regulations apply to domestic settings and not emergency facilities eg. Zone 1 is the area directly above zone 0 to the height of 225m from the bottom of the bath or shower.

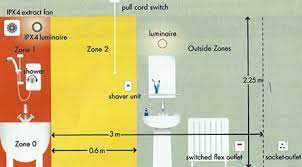

Zone 1 is the area above the bath or shower to a height of 225m from the floor. Bathroom Zones Electrical Safety and Using Electrical Equipment in Bathrooms Including Lighting Extractor Fans Shaver Sockets and Other Electrical Devices. Zone 2 is an area stretching 06m outside the perimeter of the bath and to a height of 225m from the floor.

Zone 1 is limited by the vertical surface circumscribing the bath tub or shower basin. Any fitting used in this zone must be low voltage max 12v and be rated at least IP67 which is total immersion proof. In this zone again an IP rating of at least IPx4 is required.
